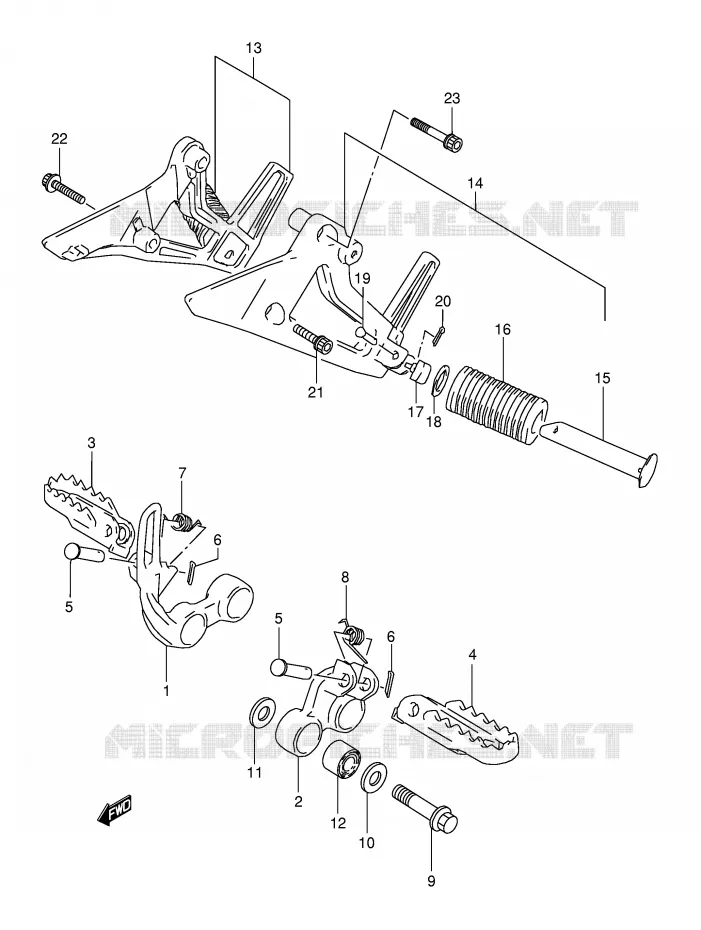

Référence | Désignation | Prix Unitaire TTC | Qté | |||
---|---|---|---|---|---|---|
# 1 |
43510-44B10-019 4351044B10019 4351044B10019 |
BARRE DE REPOSE PIED
|
Non disponible | |||
# 2 |
43520-44B10-019 4352044B10019 4352044B10019 |
BARRE DE REPOSE PIED
|
Non disponible | |||
# 3 |
43550-44B10-019 4355044B10019 4355044B10019 |
REPOSE PIED
FOOTREST, FRONT RH (BLACK) |
Non disponible | |||
# 4 |
43560-44B10-019 4356044B10019 4356044B10019 |
REPOSE PIED
FOOTREST, FRONT LH (BLACK) |
Non disponible | |||
# 5 |
09200-10008-000 0920010008000 0920010008000 |
PIN
PIN 16X10 |
||||
# 6 |
04111-20208-000 04111-2020A-0000411120208000 |
GOUPILLE
PIN 12X10 |
||||
# 7 |
09448-15008-000 0944815008000 |
SPRING
|
Non disponible | |||
# 8 |
09448-15004-000 0944815004000 0944815004000 |
SPRING
SPRING, LH |
||||
# 9 |
09103-10255-000 0910310255000 0910310255000 |
BOLT, 10X57
BOLT ![]() |
||||
# 10 |
09160-10118-000 09160-10128-XC00916010118000 |
WASHER
|
||||
# 11 |
09160-10059-000 09160-10124-0000916010059000 |
WASHER, 10.1X23X2.30
WASHER, RH INNER |
||||
# 12 |
09319-10065-000 0931910065000 0931910065000 |
BUSH
|
Non disponible | |||
# 13 |
43600-31D00-13L 4360031D0013L |
REPOSE PIED
FOOTREST, PILLION RH (SILVER) |
Non disponible | |||
# 14 |
43700-31D00-13L 4370031D0013L |
REPOSE-PIED
FOOTREST, PILLION LH (SILVER) |
Non disponible | |||
# 15 |
43610-31D00-000 4361031D00000 |
REPOSE PIED
BAR, PILLION FOOTREST |
Non disponible | |||
# 16 |
43612-44B00-000 4361244B00000 4361244B00000 |
CAOUTCHOUC
RUBBER |
Non disponible | |||
# 17 |
43650-31D00-000 4365031D00000 4365031D00000 |
CUSHION
|
Non disponible | |||
# 18 |
09160-19006-000 09160-19024-0000916019006000 |
WASHER, 19.5X32X2.0
WASHER (19.5X32X2) |
||||
# 19 |
09200-06041-000 0920006041000 0920006041000 |
PIN
PIN 16X10 |
||||
# 20 |
04111-20158-000 04111-2015A-0000411120158000 |
GOUPILLE
PIN 12X10 |
||||
# 21 |
09106-08120-000 09106-08151-0000910608120000 |
BOULON
BOLT 10X48 |
||||
# 22 |
09106-08121-000 0910608121000 0910608121000 |
BOLT
BOLT 10X39 |
||||
# 23 |
09106-08122-000 0910608122000 0910608122000 |
BOLT
|
Suzuki DR
Cylindrée: 800 cc Année: 1991 Code modèle DR800SUM(E4)
