| Désignation | Référence | Qté |
|---|
| Désignation | Référence | Qté |
|---|
| Référence | Désignation | Prix Unitaire TTC | Qté | |||
|---|---|---|---|---|---|---|
| # 1 |
17661-48G10-000 1766148G10000 1766148G10000 |
BOITER
COVER, THERMOSTAT |
||||
| # 2 |
17662-48G00-000 1766248G00000 1766248G00000 |
CONNECTEUR
CONNECTOR, HERMOSTAT INLET |
||||
| # 3 |
17670-06G50-000 17670-06G51-0001767006G50000 |
THERMOSTAT
THERMOSTAT, WATER |
||||
| # 4 |
09280-18008-000 0928018008000 0928018008000 |
O RING
O RING (D:3.2, ID:17.8) |
||||
| # 5 |
01550-0620A-000 015500620A000 015500620A000 |
VIS
BOLT |
||||
| # 6 |
01547-0625A-000 015470625A000 015470625A000 |
VIS
BOLT |
||||
| # 7 |
17851-22H00-000 1785122H00000 1785122H00000 |
DURIT
HOSE, RADIATOR INLET |
||||
| # 8 |
17852-22H00-000 1785222H00000 1785222H00000 |
DURIT
HOSE, RADIATOR OUTLET |
||||
| # 9 |
17853-48G00-000 1785348G00000 1785348G00000 |
DURIT
HOSE, CYLINDER INLET |
||||
| # 10 |
17854-48G00-000 1785448G00000 1785448G00000 |
DURIT
HOSE, WATER BYPASS UPPER |
||||
| # 11 |
17855-48G00-000 1785548G00000 1785548G00000 |
DURIT
HOSE, WATER BYPASS LOWER |
||||
| # 12 |
17856-48G00-000 1785648G00000 1785648G00000 |
DURIT
HOSE, REAR CYL HEAD OUTLET |
||||
| # 13 |
17857-22H00-000 1785722H00000 1785722H00000 |
DURIT
HOSE, THERMOSTAT OUTLET |
||||
| # 14 |
17858-22H00-000 1785822H00000 1785822H00000 |
DURIT
HOSE, CONDUCTION |
||||
| # 15 |
17859-48G00-000 1785948G00000 1785948G00000 |
SUPPORT
BRACKET |
||||
| # 16 |
17860-48G00-000 1786048G00000 1786048G00000 |
TUYAU
PIPE, CYL WATER INLET |
||||
| # 17 |
17890-06G20-000 1789006G20000 1789006G20000 |
RACCORD
UNION
|
||||
| # 18 |
17910-22H00-000 1791022H00000 1791022H00000 |
VASE D'EXPANSION
TANK ASSY, RESERVOIR |
||||
| # 19 |
17931-02FA0-000 1793102FA0000 1793102FA0000 |
BOUCHON
.CAP
|
||||
| # 20 |
17912-22H00-000 1791222H00000 1791222H00000 |
AMORTISSEUR
CUSHION |
||||
| # 21 |
17982-22H00-000 1798222H00000 1798222H00000 |
DURIT
HOSE, TANK OVERFLOW |
||||
| # 22 |
17981-22H00-000 1798122H00000 1798122H00000 |
DURIT
HOSE, TANK INLET NO.1 |
||||
| # 23 |
17981-22H10-000 1798122H10000 1798122H10000 |
DURIT
HOSE, TANK INLET NO.2 |
||||
| # 24 |
09364-06005-000 0936406005000 0936406005000 |
UNION
JOINT, HOSE
|
||||
| # 25 |
09111-06085-000 0911106085000 0911106085000 |
VIS
BOLT (6X12) |
||||
| # 26 |
09401-08411-000 0940108411000 0940108411000 |
CLIP
|
||||
| # 27 |
09408-00224-000 0940800224000 0940800224000 |
COLLIER
CLAMP |
||||
| # 28 |
17730-12C30-000 1773012C30000 1773012C30000 |
BOUCHON
CAP |
||||
| # 29 |
17791-24D00-000 1779124D00000 1779124D00000 |
PIPE
CONDUCTION |
||||
| # 30 |
01550-0620A-000 015500620A000 015500620A000 |
VIS
BOLT |
||||
| # 31 |
13650-49X00-000 1365049X00000 1365049X00000 |
SENSOR TEMPERATURE
SENSOR, WATER TEMP |
||||
| # 32 |
09168-12017-000 0916812017000 0916812017000 |
JOINT DE VIDANGE 12X17X1
GASKET (12X17X1)
|
||||
| # 33 |
17891-48G00-000 1789148G00000 1789148G00000 |
JOINT
JOINT, 3 WAY |
||||
| # 34 |
09103-06274-000 0910306274000 0910306274000 |
VIS
BOLT (6X16) |
||||
| # 35 |
09103-06280-000 0910306280000 0910306280000 |
BOULON
BOLT (6X12) |
||||
| # 36 |
07130-0612A-000 071300612A000 071300612A000 |
BOLT
|
||||
| # 37 |
09280-18008-000 0928018008000 0928018008000 |
O RING
O RING (D:3.2, ID:17.8) |
||||
| # 38 |
09280-26005-000 0928026005000 0928026005000 |
O RING (D:2.4, ID:26.2)
|
||||
| # 39 |
09401-12409-000 09401-12414-0000940112409000 |
CLIP
|
||||
| # 40 |
09402-28513-000 0940228513000 0940228513000 |
COLLIER DE SERRAGE
CLAMP |
||||
| # 41 |
09402-32512-000 0940232512000 0940232512000 |
CLAMP
|
||||
| # 42 |
09402-38512-000 0940238512000 0940238512000 |
COLLIER DE SERRAGE
CLAMP |

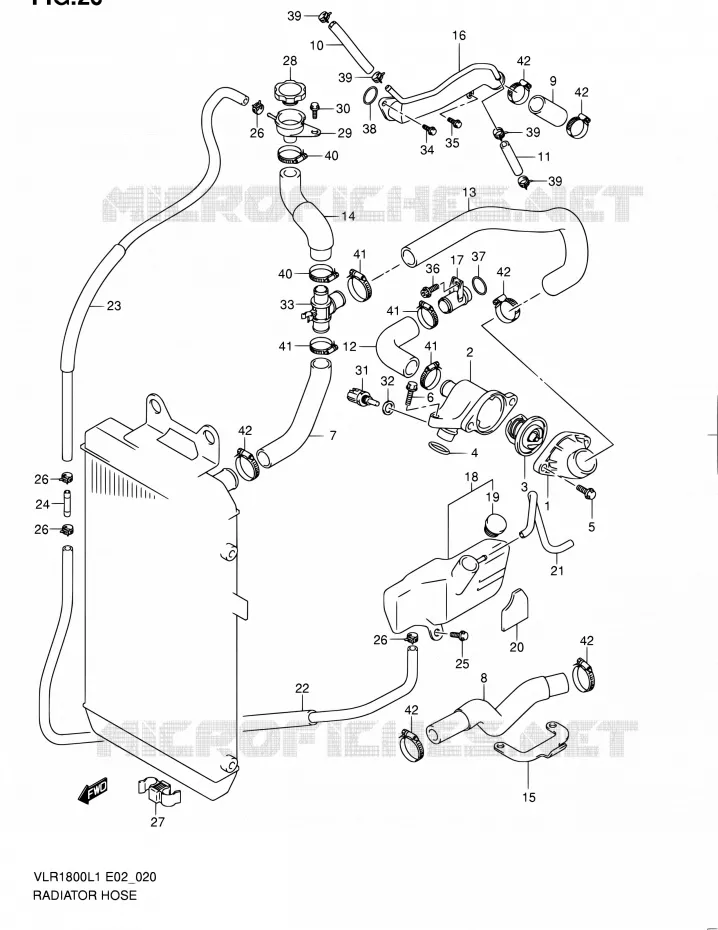

Suzuki INTRUDER
Cylindrée: 1800 cc Année: 2011 Code modèle VLR1800T L1 (E02,E19,24) TOURER
